The pressure test pump LR-Cal LPP 10 is used to generate pressure and vacuum for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by comparative measurements in the low-pressure and vacuum range. The pressure tests may be carried out in laboratories, workshops or on site at the measuring point.
If the instrument to be tested and a sufficiently accurate reference measuring instrument are connected up to the pressure test pump, the same pressure is applied to the two measuring instruments when the pump is operated. By comparing the two measure values at random pressure values, the accuracy can be verified or the unit under test can be adjusted.

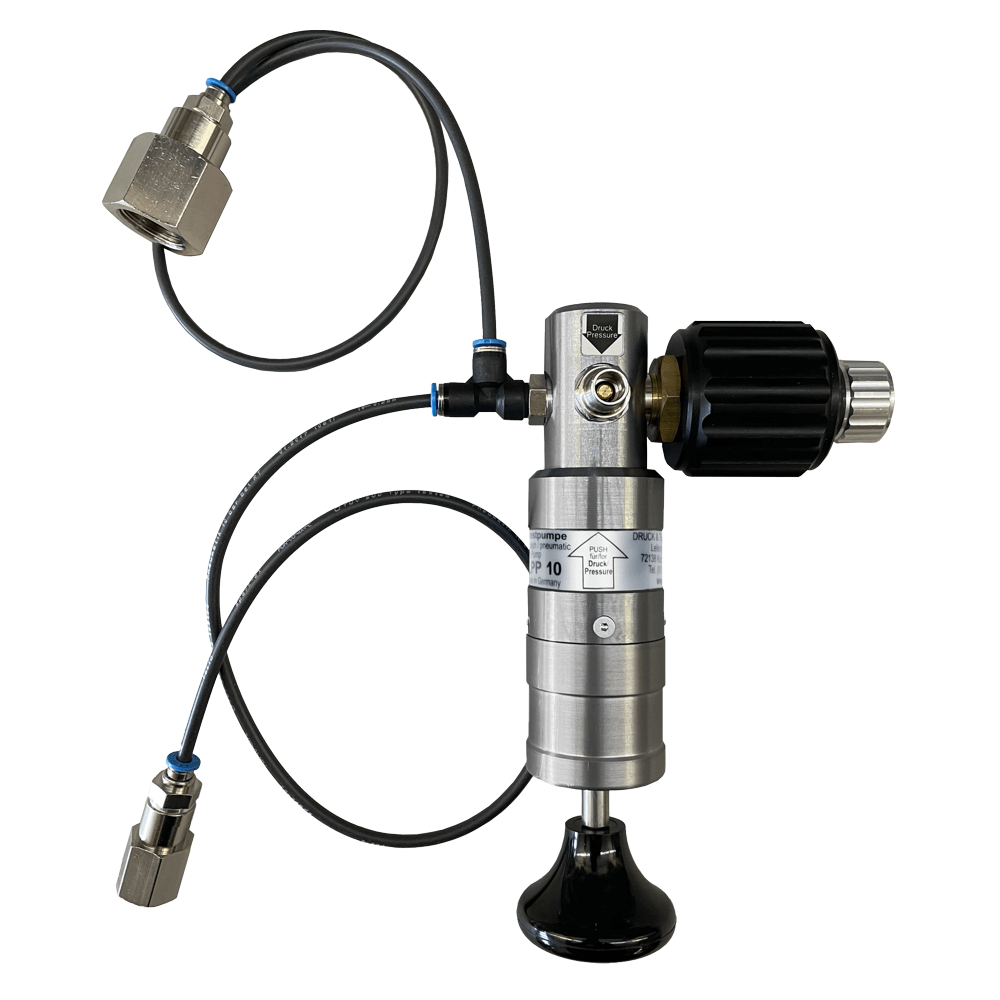

The LR-Cal LPP 10 is a pneumatic pressure test pump for low-pressure ranges up to 8 bar with change-over switch to vacuum down to -850 mbar. Despite its compact dimensions, the pressure test pump is easy to operate and allows for exact generation of the required test pressures. The maximum pressure or vacuum achievable depends on the attached test volume. The smooth-running pressure generation and the integrated fine adjustment valve allow a safe and precise setting of very small positive resp. negative pressure values in the range of mbar.
The unit under test and the reference instrument can be easily connected with the supplied accessories.
LR-Cal LPP 10 Specification
| Pressure generation: |
0 to 10 bar = 0 to 145 psi, switchable to |
| Vacuum generation: |
0 to -0.85 bar = 0 to -25 inHg |
Pressure ports
(standard version): |
For reference measuring instrument:
1/2" BSM female, with o-ring, via hose and t-piece
For unit under test:
1/4" female, with o-ring, via hose and t-piece |
| Medium: |
Ambient air |
| Priming pressure: |
Ram |
| High pressure: |
Volume adjustment valve |
| Fine pressure adjustment: |
Volume adjustment valve (very sensitive) |
| Volume per stroke: |
approx. 0.038 cm³ |
| Dimensions: |
172 x 100 x 58 mm (without connection pieces and hoses) |
| Weight: |
approx. 697 g (without connection pieces and hoses) |
| Order-Code: |
LPP-10 |
