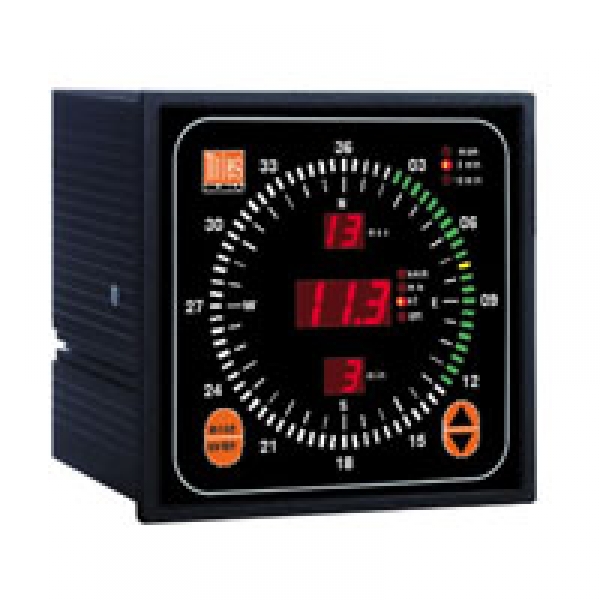

Digital indicator for the display of wind speed and wind direction.
Indicates the wind direction in a circle of 72 LED luminous bars, and the speed by 7-segment-LEDs.
In addition, the minimum and maximum wind speed values can be indicated by two other digit displays.
Display options of the WS:
• instantaneous value or
• 2 min. mean value and maximum value or
• 10 min. mean value and maximum value
Display options of the WD:
• instantaneous value or
• 2 min. mean value and variation or
• 10 min. mean value and variation
The calculation of the mean values and maximum values is carried out according to the ICAO.
A built-in RS-422-interface facilitates the connection of other wind indicators LED.
| 4.3250.00.000 |
Operating voltage |
230 V / 50 Hz; 24 V AC 12 V-35 V DC |
| 4.3250.01.000 |
115 V / 50 Hz; 24 V AC 12 V-35 V DC |
| |
Display range Wind velocity |
0-99,9 / 0-999 m/s / kt / km/h / Bft |
| Direction Resolution |
0-360° |
| Resolution Wind velocity |
0,1 / 1 |
| Resolution Wind direction |
5° |
| Wind transmitter input |
WS |
0-1600 Hz |
| WD |
Thies-serial synchronous |
| or WD + WV |
serial data telegram via RS 422 |
| Interface |
RS 422 |
| Connection |
Screw terminal |
| Ambient temp. |
-10 ... +50 °C |
| Model |
Switch panel mounting |
| Protection |
IP 23 |
| Dimensions |
144 x 144 x 135 mm |
| Weight |
1,5 kg |
Wind Display LED
For the connection of wind transmitter pairs with analogue output values Further description please refer to 4.3250.0x.000
| Order No. |
|
4.3250.0x.1xx
|
|
|
|
.00.1xx
|
Operating voltage |
230 V / 50 Hz 24 V AC 12 V-35 V DC |
|
.01.1xx
|
|
115 V / 50 Hz 24 V AC 12 V-35 V DC |
|
.140
|
Measuring value input |
0 … 20 mA |
|
.141
|
4 … 20 mA |
|
.161
|
0 ... 10 V |
