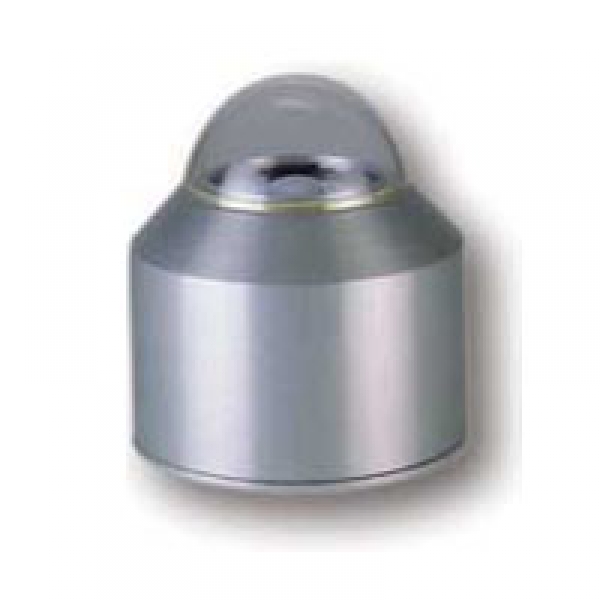

The sensor acquires the radiations UV-A and UV-B independently from each other. The measuring results correspond to the erythema-curve acc. to DIN 5050.
They give direct information about the medically and biologically relevant correlation of these radiation fields. The measurement is cos-corrected.
Delivery includes calibration certificate
| Order-no. |
|
|
|
7.1416.10.040
|
electr. output |
0 - 20 mA |
|
.041
|
4 - 20 mA |
|
.051
|
0 - 5 V |
|
.061
|
0 - 10 V |
| UV-B |
meas. range |
0 - approx. 0,7 W /m² |
| Spektralbereich |
0,265 - 0,315 µm |
| max. Empfindlichkeit |
0,297 µm |
| UV-A |
Messbereich |
0 - approx. 100 W /m² |
| Spectral range |
0,310 - 0,400 µm |
| max. sensitivity |
0,335 µm |
| |
operating voltage for output 10 V |
10 -24 V DC |
| 14 -24 V AC |
| temperature range |
-30°C - + 60°C |
| switch-on time |
< 1 sec |
| switch-off time |
< 12 s |
| cos-correction |
error f2 < 1,5 % |
| linearity |
< 1% |
| absolute error |
< ±10 % |
| temperature coefficient |
< 0,2 % /K |
| cable |
5 m long, plug |
| dimensions |
Ø 80 x 82 mm |
| weight |
0,3 kg |
