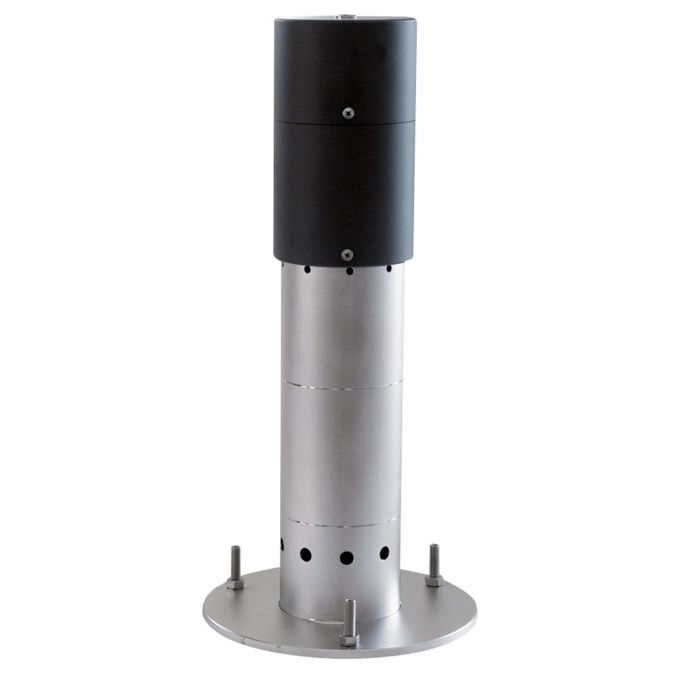

Referring to a reference height the down-going water-level is measured continuously, and is output as current or voltage. The evaporation transmitter is temperature-compensated.
Evaporation
|
Measuring range
|
0 ... 100 mm
|
Resolution
|
0.1 mm
|
Accuracy
|
± 1.5 % o. mr. @ 0 ... 50 °C
|
General
|
Ambient temp.
|
-15 ... +50 °C
|
Electr. connection
|
Cable 5 m, LiYCY 4 x 0.25 mm²
|
Dimension
|
Ø 100 x 430 mm
|
Weight
|
3.5 kg
|
