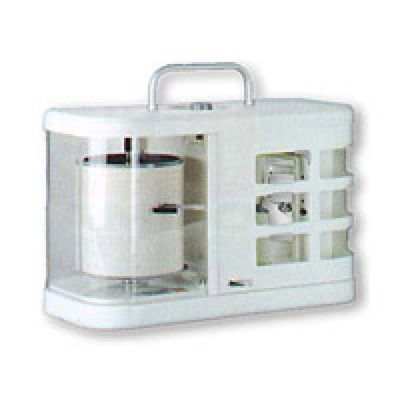

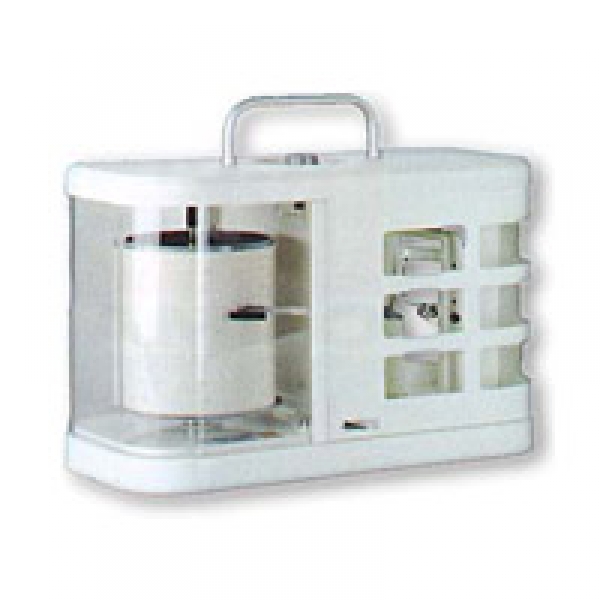

For the measurement and recording of the ambient temperature.
Registration is done on recording charts which are stretched onto a hand wound clock work drum acc. to DIN 8300 and DIN 58658 or a quartz clock work (1/7/31 days).
Delivery is effected with a set of recording charts and a recording pen
Order-No.
| |
Recording time |
Form Feed |
|
2.0600.10.xxx
|
1 day / 7 days |
11,45 mm/h, 40 mm/day |
|
2.0604.10.xxx
|
14 Tage / 31 days |
20 mm/day , 9 mm/day |
|
2.0605.10.xxx
|
1 / 7 / 31 days |
as aforesaid |
|
.0xx
|
lockable |
No |
|
.9xx
|
Yes |
| |
| |
Measuring Range |
Graduation |
|
.x00
|
-35 ... + 45°C
|
1°C |
|
.x05
|
-20 ... +60°C
|
1°C |
|
.x11
|
-10 ... +50°C
|
1°C |
|
.x14
|
0 ... +40°C
|
0,5°C |
|
.x17
|
0... +80°C
|
1°C |
| |
Accuracy |
± 1 % of m.r. |
| Measuring element |
Bimetall |
| Recording width |
82 mm |
| Dimensions |
280 x 138 x214 mm |
| Weight |
2,2 kg |
