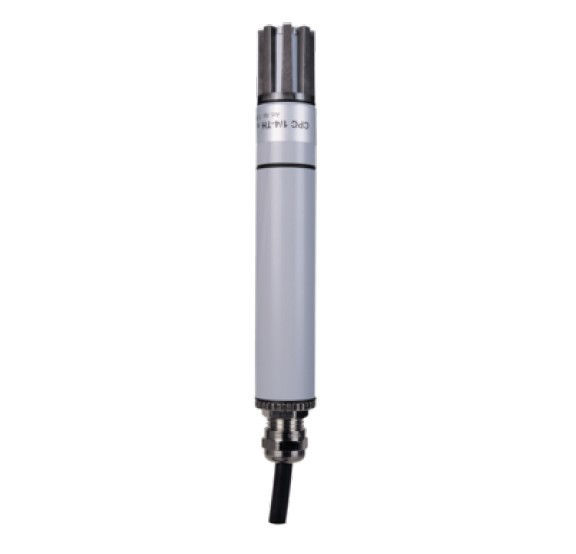

Electrical measured value receiver to measure the ambient temperature.
The measured value is output as a resistance value in accordance with IEC 751 resp. as an analogue voltage or current signal.
| Order No. | |
|---|
|
2.1280.00. xxx
|
Electr. output |
Accuracy |
|
.000
|
Pt 100 ( IEC 751) |
1/3 class B (± 0,1 K) |
|
.141
|
4 ... 20 mA |
± 0,3 K |
|
.161
|
0 ... 10 V |
± 0,2 K |
| |
Measuring range |
- 30 ... + 70 °C |
| Time constant |
20 s (90 %) |
| Ambient temp. |
- 40 ... + 80 °C |
| Operating voltage |
I-output 12 - 30 V DC
U-output (10 V) 24 V DC ± 10 % |
| Internal power consumption |
ca. 5 mA (10 V) |
| Cable |
5 m |
| Dimension |
Ø 20 x 138 mm |
| Weight |
0,35 kg |
