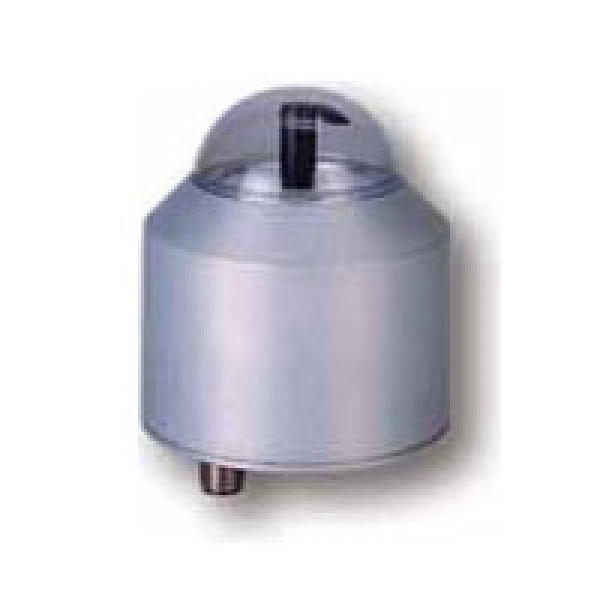

Instrument to measure the global radiation and the sunshine duration.
The threshold of sunshine duration is stated by the German Weather Service (DWD) with 120 W/m². The sensor delivers a digital Yes-/No-information for the sunshine duration and a voltage as information for the global radiation. The measurement is cos-corrected.
Delivery includes calibration certificate.
| Order Code |
|
|
| 7.1420.00.000 |
Measuring range Global |
0 -ca. 1300 W/m² |
| |
Spectral range |
0,38 µm -1,1 µm |
| Max. spectr. sensitivity. |
0,78 µm |
| Temperature range |
-30°C - +60°C |
| Linearity |
< 1 % |
| cos-correction |
error f2 < 3% |
| Signal output |
0 - 5 V (global rad.) |
| Operating voltage |
10 V - 24V DC |
| Sunshine duration |
yes 4,5 V - 5,0 V |
| no 0 V - 0,6 V |
| Threshold |
120 W/m² |
| Diffusor |
PTFE |
| Cable |
5 m long |
| Dimensions |
Ø 80 mm, 82 mm high |
| Weight |
0,3 kg |
