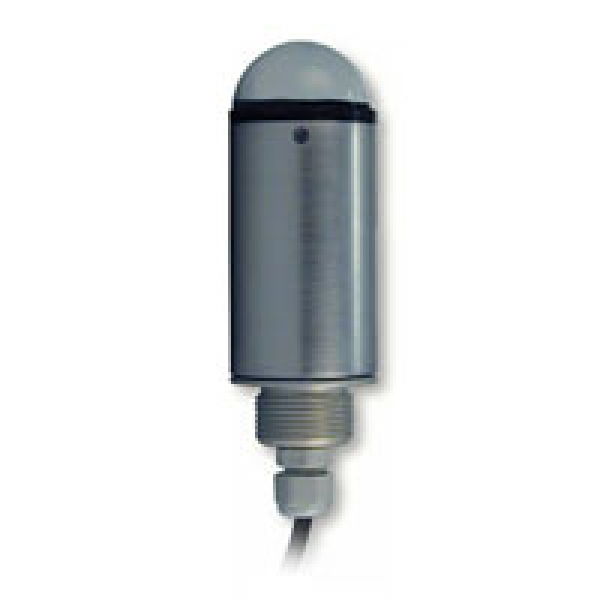

Measuring transmitter for short-wave radiation which might cause irreversible damages of the human skin.
The relative spectral sensitivity of the sensor correspond to the erythema-curve acc. to DIN 5050.
this sensor acquires exactly the skin-damaging components of this spectral range.
Delivery includes calibration certificate
| Order-no. |
|
|
|
7.1416.20.040
|
electrical output |
0 - 20 mA |
|
.041
|
4 - 20 mA |
|
.051
|
0 - 5 V |
|
.061
|
0 - 10 V |
| |
meas. Range |
0 - ca. 0,5 W /m² |
| spectral range |
0,265 - 0,315 µm |
| max. spectral sensitivity |
0,297 µm |
| temperature range |
-30°C - + 60°C |
| switch-on time |
< 1sec |
| switch-off time |
< 12sec |
| cos-correction |
Fehler f2 < 3 % |
| linearity |
< 1% |
| absolute error |
< 10 % |
operating voltage for outpu 10 V
or |
10 -24 V DC |
| 14 -24 V AC |
| cable |
5 m long |
| dimensions |
Ø 42 x 90 mm |
| weight |
0,3 kg |
