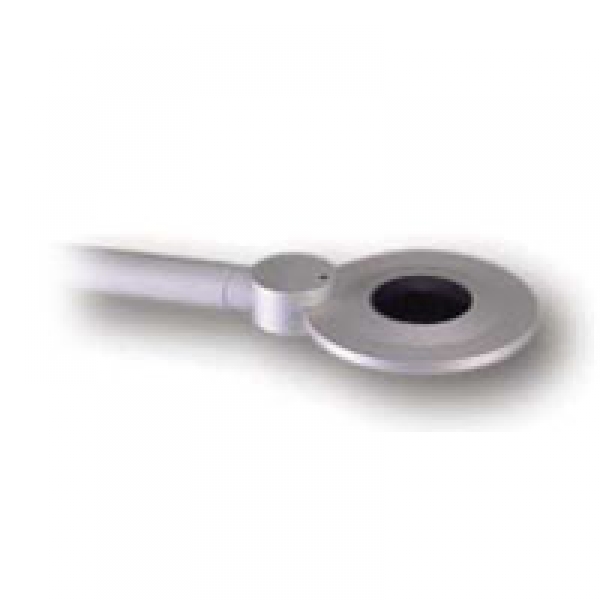

The instrument serves to measure the net radiation, the difference between the total radiation from above (solar radiation and long-wave atmospheric counter-radiation) and the total radiation from below (short-wave reflection radiation and long-wave radiation of the earth)
The output signal is in proportion to the net radiation and can be interpreted as radiation energy, which is absorbed from the earth's surface.
| Order No | | |
|---|
| 7.1415.40.000 |
Measuring range |
-200 - +1500 W/m² |
| |
Sensitivity |
10 µV/ W/ m² |
| |
Spectral range |
0,2 - 100 µm |
| |
Response time |
20 s |
| |
Sensor type |
Thermocouples |
| |
Ambient temp. |
-30 - +70°C |
| |
Cable |
3 m lang |
| |
Dimensions |
Ø 80 mm |
| |
Support Arm |
Ø 16 x 400 mm |
| |
Weight |
0,26 kg |
