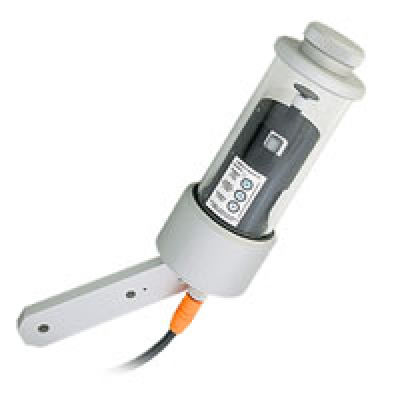

Instrument to measure the sunshine duration and direct radiation. The sunshine duration is defined as period, in which the direct solar radiationexceeds the threshold of > 120 W/m². The sensor sends a digital Yes/No-information for the sunshine duration, and a voltage as information for thedirect radiation. Delivery includes a test certificate.
| Order Code |
|
| 7.1421.03.000 |
With heating |
| Sunshine duration |
Threshold
|
120 W/m² |
| Electr. output |
yes 1 ± 0,1 V DC |
| no 0 ± 0,1 V DC |
| Direct Radiation |
Meas. range |
1000 W/m² |
| Electr. output |
0 – 1 V DC |
| |
Ambient temp. |
-40°C - +70 °C |
| Operating voltage |
12 V DC / 0,1 W |
| Heating voltage |
12 V DC / 1 W or |
| 12 V DC / 10 W |
| Cable |
15 m long |
| |
Dimensions |
294 x 131 mm |
| |
weight |
1,2 kg |
