E2T QUASAR Flare Stack Smoke Pilot Monitor Non-Contact Infrared Pyrometer Smoke Monitor (SM): Two wavelength infrared thermometer sensitive to Carbon
- Flame detection up to 400 m
- Detection of hydrocarbon as well as hydrogen flames
- CSA/US and ATEX explosion-proof housing
- Safety and environmental protection
- Automatic gain control for adverse weather conditions
- High quality sight-through optics
- On-board alarm set point relay
- Modular opto-electronic package for easy removal from housing
- IR pyrometer and amplification circuitry in one single module

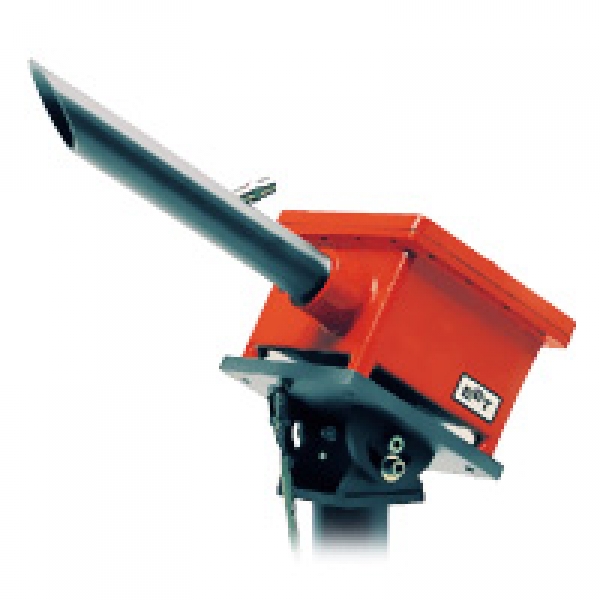

The QUASAR Model M8100SM-EXP Flare Stack Smoke Monitor provides continuous monitoring of flare stack smoke levels from remote locations up to ¼ mile (400 m) away in nearly any climate condition. This makes it ideal for use in automated smoke control systems designed to keep flare stack smoke emissions within EPA mandated levels.
The QUASAR utilizes dual wavelength infrared detection system and electronic circuitry to automatically compensate for signal variation due to rain, snow or fog. Observed smoke levels are reported via a 4-20 mA signal and an alarm set-point with adjustable timing delay. The QUASAR can be mounted on a control center roof and sighted to monitor smoke levels on distant flare stacks. It is available with a sturdy mounting system designed to resist movement in high winds and provide vernier sighting capabilities for easy target acquisition at long sighting distances.
 |
All electrical and optical components of the QUASAR Model M8100SM-EXP are housed in a single CSA AND CENELEC APPROVED enclosure with a hazardous location classification of Class 1, Division 1, Groups C and D; Class 1, Division 2, Groups A through D; and EExd IIB T4. A single interchangeable modular package mounted inside the explosion-proof enclosure houses all electronic and optical components allowing easy removal and replacement without disturbing any external connections. |
 |
The combination of modular features into a single remotely locatable system makes the QUASAR easy to install, maintain and integrate with other systems, and makes it one of the most economical flare stack smoke
Applicazioni
- • Steam Assisted • Air Assisted • Gas Assisted • Burn Pit Flares • Multi point/Staged Multi point flares • Off-Shore Flares
