Whether in process monitoring, process automation or quality control in float glass and container glass production – the infrared camera PYROVIEW 640G measures temperatures without contact exactly and reliably. Also in very fast processes or at temperature changes the data acquisition happens in realtime. For a high measurement accuracy the spectral range of the camera is optimally adjusted to measurement objects made from glass.
In stationary industrial continuous operation measurement data is recorded with high spatial resolution on fixed or moving measurement objects. In this way production processes are monitored and controlled efficiently. Therefore the Gigabit Ethernet interface guarantees a data acquisition without loss and with no appreciable time delay up to 50 images per second. The maximum image frequency of 50 Hz is adjusted optimally to the thermal time constant of the infrared array.

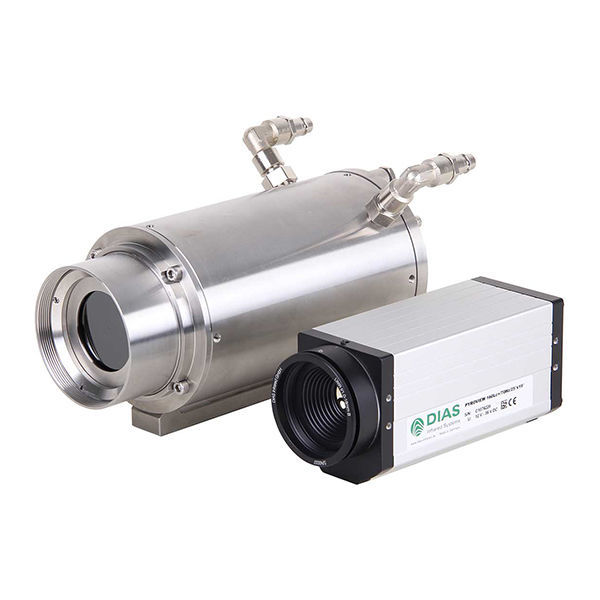

Numerous motor focus infrared lenses, including wide angle and telephoto lenses, provide a flexible adjustment to different measurement object sizes at different measurement distances. The infrared camera is either built in a small aluminium housing „compact+“ or in a stainless steel industry protection housing „protection“ that has a protection window, an air purge unit and an optional watercooling.
The camera observes the production in stand-alone operation without any connected computer via two galvanically isolated digital inputs and outputs. All process parameters of the standalone version are programmed once on location via PC connection. The modular Windows software PYROSOFT of the camera can be adjusted and extended to process-related requirements. The free software PYROSOFT Compact is delivered with every PYROVIEW infrared camera.
Accessori e Software:
Power supply box
I/O box
Software Pyrosoft
System configuration compact stand alone operation
System configuration protection Industrial application
System configuration protection PLC coupling
Applicazioni
- Industria vetraria
- Industria siderurgica
- Produzione di semiconduttori
- Controllo traffico nelle gallerie
- Rapida rilevazione incendi
Materiali
