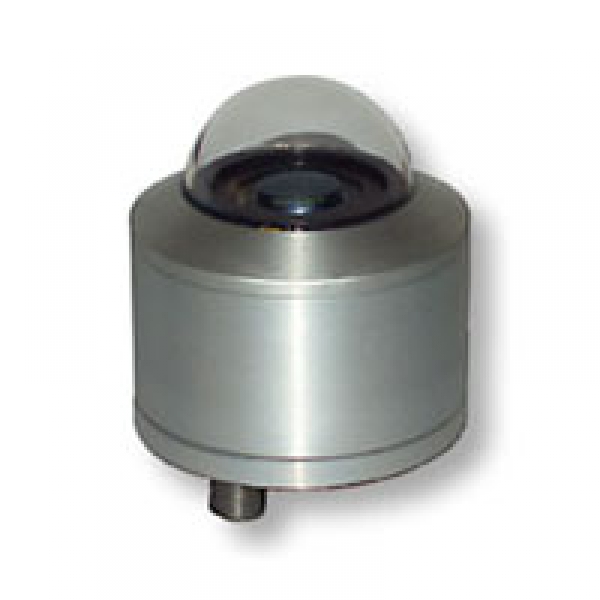

Electrical measuring instrument to measure the global radiation.
The measurement is cos-corrected.
Delivery includes calibration certificate.
| Order Code | |
|---|
|
7.1415.05.xxx
|
Measuring range |
0 - 1300 W/m² |
|
.040
|
Electrical output |
0 - 20 mA |
|
.041
|
4 - 20 mA |
|
.051
|
0 - 5 V |
|
.061
|
0 - 10 V |
| |
Spectral range |
0,38 - 2,8 µm |
| Cos - correction |
error f2 < 3% |
| Linearity |
< 1% |
| Abs. error |
< 10% |
| Diffuser |
PTFE |
| Dome |
optical glass |
| Temperature range |
- 30 - + 60°C |
Operating voltage
for output 10 V |
12 - 24 V DC |
| 14 - 24 V DC |
| Cable |
5 m long |
| Dimensions |
Ø 80 x 95 mm |
| Weight |
0,3 kg |
