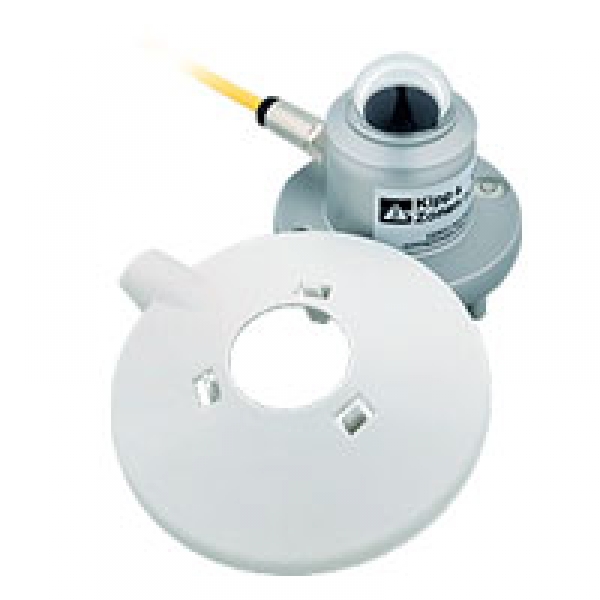

Measuring value transmitter for the determination of the global radiation.
The instrument can be used also as Albedometer.
The instrument is "second class" according to WMO and ISO 9060.
Delivery includes calibration certificate.
| Order Code | |
|---|
| 7.1415.03.003 |
Measuring range |
0 - 2000 W/m² |
| |
Sensitivity |
5 - 20 µV/W/m² |
| Spectral range |
0,31 - 2,8 µm |
| Non-linearity |
2,5 % (0 - 1000 W/m²) |
| Internal resistance |
20 - 200 Ohm |
| Time constant |
18s |
| Sensor type |
64 Thermocouples |
| Ambient temp. |
- 40 - + 80°C |
| Cable |
10 m long |
| Dimensions |
Ø 110 x 68 mm |
| Weight |
0,35 kg |
