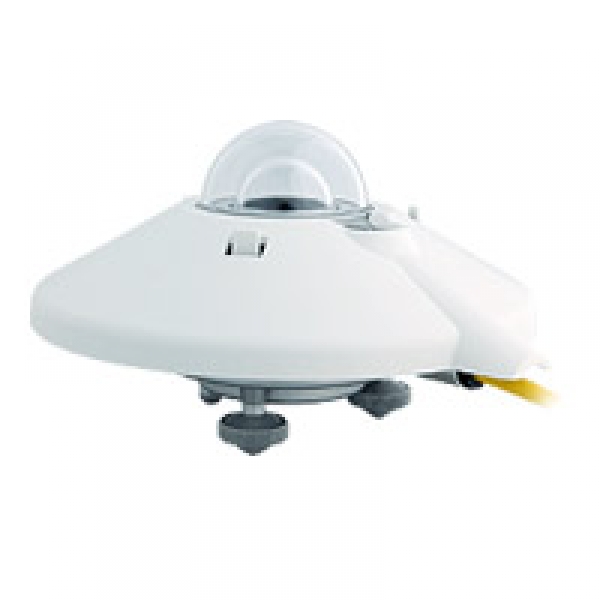

WMO- recommended measured value transmitter to determine global radiation.
It is also used as a reference instrument due to its measurement precision.
Easy to adjust horizontally owing to its adjustable feet and a level.
The instrument is "secondary standard" according to WMO and ISO 9060.
Delivery includes calibration certificate.
| Order Code | |
|---|
| 7.1415.01.001 |
Measuring range |
0 - 2000 W/m² |
| |
Sensitivity |
7 - 14 µV/W/m² |
| Spectral range |
0,31 - 2,8 µm |
| Non-linearity |
± 0,5 % (0 - 1000 W/m²) |
| Internal resistance |
10 - 100 ohm |
| Time constant |
5s |
| Ambient temp. |
100 Thermocouples |
| Sensor type |
- 40 - + 80°C |
| Cable |
10 m long |
| Dimensions |
Ø 150 x 92 mm |
| Weight |
0,85 kg |
