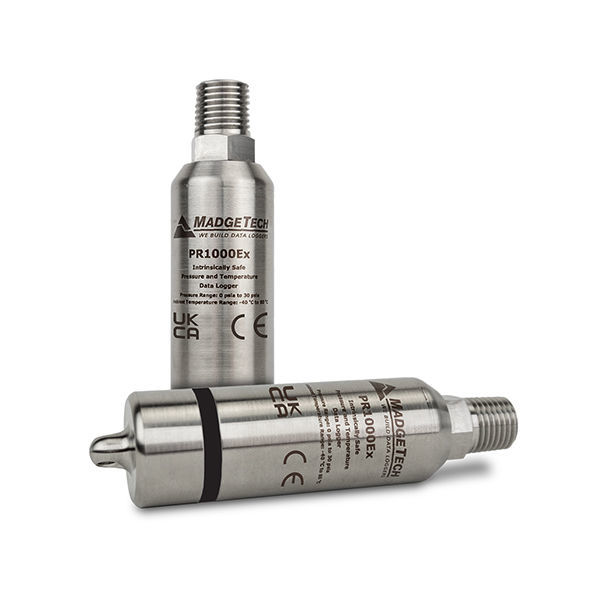

PR1000EX

The PR1000Ex is a temperature, pressure, and transient pressure data logger that carries hazardous location certification (ATEX, IECEx).

  • Electrical Protection Concepts: IEC: 60079-11 Ex ia – Ex ic, Intrinsic Safety Zones 0-2
  • Equipment Protection Level: Ga – Gc, Zones 0-2
  • Gas Groups: IIC
  • Temperature Class: T4

Designed to fit in the palm of your hand, the PR1000Ex is only 3.6 inches tall and features a common ¼ in. NPT pressure port for easy installation. The PR1000Ex can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±2.0 °C. To adapt to most applications, the PR1000Ex will be available in 10 different pressure ranges from 30 up to 5000 PSIA/PSIG.

The PR1000Ex is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The PR1000Ex is certified in accordance with the latest issue of IECEx 60079-0, IECEx 60079-11, and Directive 2014/34/EU.
