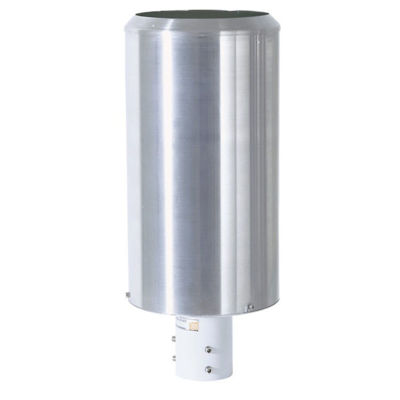

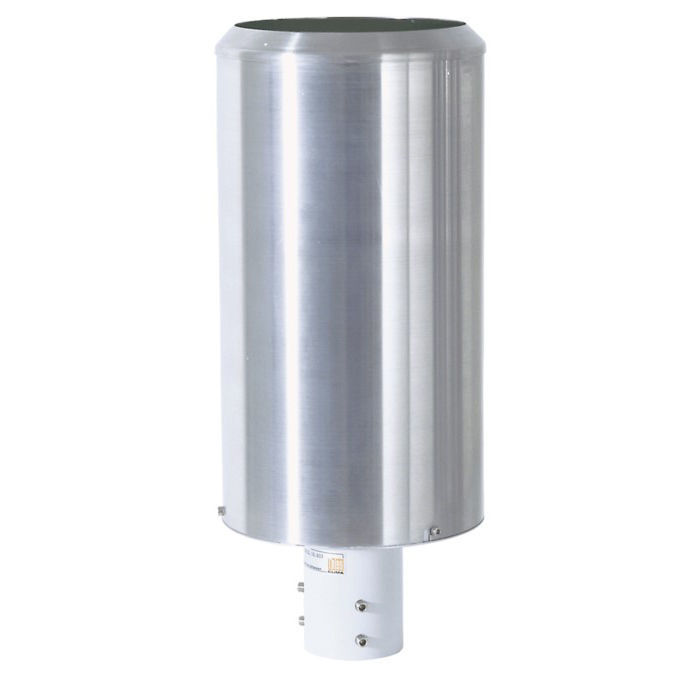

The measuring principle is in accordance to the “Guide to Meteorological Instruments No 8” of the WMO. The precipitation is conducted into the tipping bucket via the collecting area and funnel. On achieving the maximum volume capacity the bucket tips over.
Each tipping event is acquired contract-free, is linearized, and output for further processing.
|
Precipitation
|
|
Measuring range
|
max. 11 mm / min
|
|
Collecting area
|
200 cm²
|
|
Resolution
|
0.1 mm
|
|
Meas. principle
|
tipping buccket
|
|
Accuracy
|
± 3%
|
|
Data output digital
|
|
Output type
|
pulses
|
|
Operating voltage
|
|
Electronic
|
5 ... 24 V DC
|
|
General
|
|
Mounting
|
on mast tube Ø 1,5``
|
|
Dimension
|
Ø 186 x 445 mm
|
|
Weight
|
3.3 kg
|
|
Matirial housing
|
stainless steel
|
