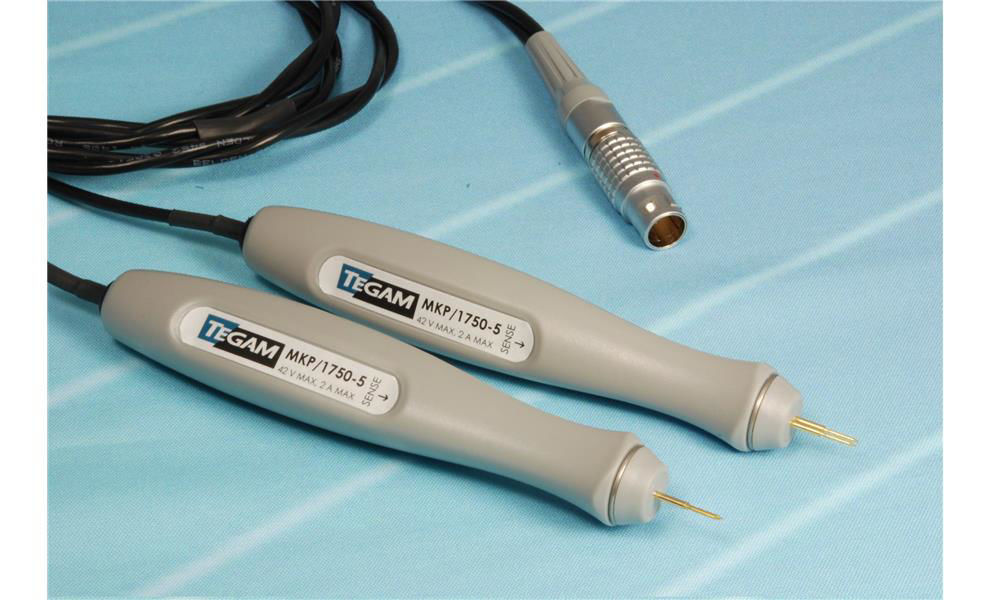

Miniature Kelvin Probe

1750 Connector

5 ft

These probes are excellent for making four-wire surface resistance measurements on films and other flat metallic surfaces.  The probes are marked indicating the sense pins, ensuring an operator error free measurement. Each probe has two spring-loaded, replaceable tips that can be easily removed and replaced. Variety of probe tips available. The test leads are 5 feet long each and are terminated with a Lemo connector. Pin center to pin center is 0.11 in (0.28 cm). Cable length – 5 ft Available Pin Options: P/N MKP-B, MKP-F, MKP-H, MKP-J, MKP-LM (4 pins) (Pins are not included with the probe set and need to be ordered separately.)

Technical Specifications

• Multiple Replaceable Tip Styles (not included)-MKP-B, MKP-F, MKP-H, MKP-J, MKP-LM (4 pins)
• Excellent for making four-wire surface resistance measurements
• Ensure an operator error free measurement
• Each probe has 2 spring-loaded, replaceable tips
• Variety of probe tips available
• Cable Length: 5 ft
• Compatible with TEGAM 1740, 1750
• Miniature Coaxial Probe (MCP/1750-5)
