Standardized compact dimensions 30x30
• friction-free force-balance measuring system
• high repeatability
• very good longterm stability
• pressure ranges -0,9... 0 (+1) bar or 0,2 - 16 bar
• process connection female thread or sub-base mounting
• electrical connection ISO 4400 or M12x1
• approved for applications requiring PLc
• approved for ATEX-Zone 2 / 22
Description

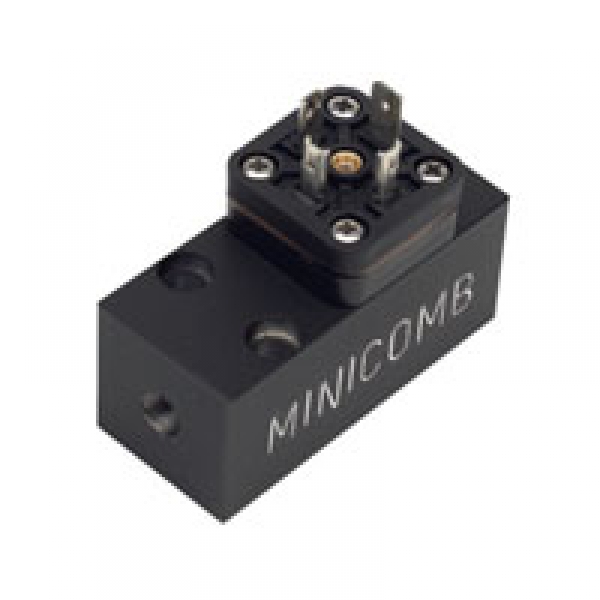

The MINICOMB® pressure switch series is a very compact-sized 30x30 pressure switch for measuring compressed air, low-viscous media and non-aggressive gases.
It is based on a force-balance measuring system with bellows sensors actuating one switching contact. The force-balance measuring system with bellows sensors is friction-free and features high repeatability and very good longterm-stability.
The MINICOMB® is available with pressure range 0,2 - 16 bar, -0,9 - 0 bar or -0,9...+1 bar. Sub-base mounting or female threads are availbe for connecting to the process, while 4-pin plug according to ISO 4400 or plug M12x1 are available for electrical connection.
The MINICOMB® pressure switch series is approved for applications where PLc (Performance Level according to ISO 13849) is at least required (PLr) as well as for applications within hazardous area (zone 2 / 22 according to ATEX Directive 94/9/EC).
