- Up to 4 channels per unit
- Wide temperature range: 150° to 3600°C
- High accuracy
- Fast response; high speed 20 measurements/sec./channel
- Automatic calibration when fiber optic cables are replaced
- Measurement of low emissivity reflective surfaces
- Local front panel display of temperature and emissivity for each channel
- Broad range of applications
- Digital and analog outputs
- Selection of up to 2 spectral bands

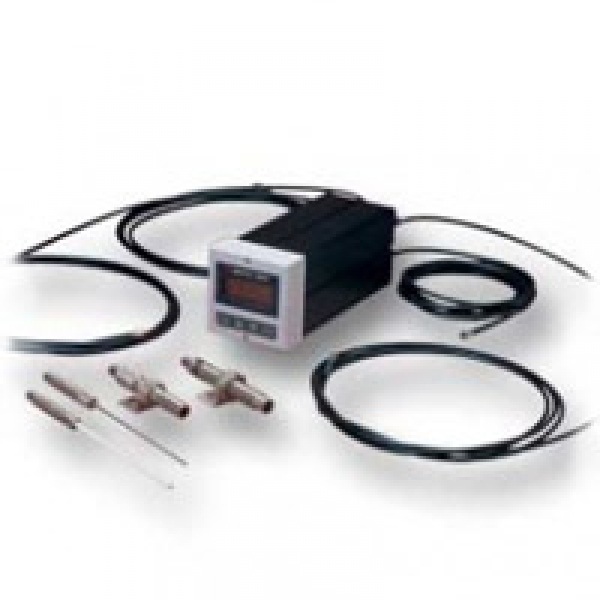

Mikron M680 Infraducer represents a major advance in non-contact infrared temperature measurement technology. This unique multi-channel, fiber optic infrared thermometer features exceptionally broad temperature spans from as low as 150°C up to 3600°C and selected spectral responses in the 0.65 to 1.6 micron domain.
Users of the Mikron M680 can choose from 1 to 4 measurement channels and can select from a variety of lens assemblies, optical cable lengths and temperature ranges. The use of the lens assembly and flexible fiber optic cable permits the measurement of targets which are not in direct line of sight of the detector. Other benefits include location of the sensitive electronics module at a safe distance from the process heat source, the elimination of water cooling in such applications as glass and metallurgical furnaces enclosed vessels or in nucleonic or electromagnetic environments. The multi-channel configuration of the M680 also results in cost savings over a number of single channel units.
Typical applications:
- Semiconductor, rapid thermal processing, CVD, PVD, Plasma etching, epitaxial reactors
- Crystal growing
- Induction heat treating heat treatment and fabrication of metals
- Glass forehearths, Glass melting tank
- Vacuum metal melting
