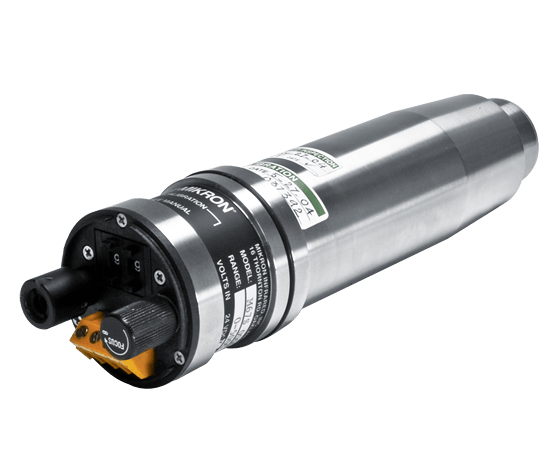

Compact Two-wire Infrared Thermometer for Non-Contact Temperature Measurement in many different applications. Temperature ranges between 0 and 2200°C.
- Two-wire Pyrometers with analog output 4 … 20 mA for connection to standard analyzing instruments
- Through-lens sighting and high quality variable focus optical system
- Different optics for optimal match to the application
- Versions with different spectral ranges
- High accuracy of 0.5%
- Rugged stainless steel design
Universal Application
Completely self-contained, the M67S Infraducer can be used as true two-wire temperature transducer/transmitters which produce a standard 4-20 mA linear output. Powered by its current loop, each Infraducer is completely compatible with any existing instrumentation for recording or process control.
A rugged, stainless steel housing, miniature size and light weight make the Infraducer suitable for many applications. To ensure minimum maintenance and utmost reliability, the Infraducers have absolutely no moving parts.
When contained within its companion cooling jacket and air purge assembly, each Infraducer can withstand the most punishing conditions found in industry. The Infraducers have universal application in virtually any type of industry.
Field Interchangeability
Superior design not only ensures accuracy and long term reliability, it also ensures interchangeability between Infraducers of the same model with ±0.50% accuracy.
For especially demanding applications, the Infraducers have a digital emissivity control which can be set with a resolution of 0.01. This ensures that, should one of the Infraducers need to be replaced, the replacement unit can be preset in every aspect before installation.
The M67S is available with a variety of temperature ranges, spectral responses, and optical characteristics to meet specific applications.
Applicazioni
- Plastica
- Tessile
- Gomma
- Vetro
- Ceramica
- Carta
- Cibo
- Metallo
- Cemento
- Chimica
- Trattamento termico
- Potenza
- Stampa
- Petrolchimica
- Robotica
- Semiconduttori
- Sistema per vuoto
