High Temperature Blackbody Calibration Source
High temperature calibration source, 300 °C to 1700 °C (572 °F to 3092 °F)
Key Features
- High effective emissivity 1.0 at 0.65-1.8 um
- High accuracy
- Excellent stability +/-1°C per 8 hour period
- Fast slew rate (limited to 20°C/min)
- Manufactured and tested to meet rigid quality control standards
- Furnished with certificate of calibration traceable to NIST
- Wide temperature range
- RS 232 serial communication (standard), RS 485 (optional)
Details

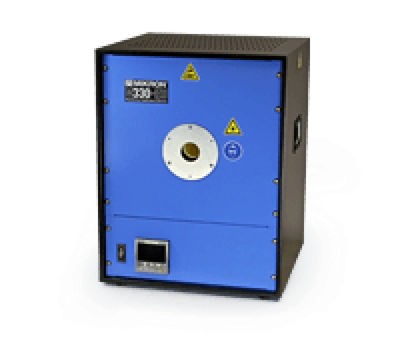

The M330 is a blackbody calibration source utilizing a digital indicating temperature controller that may be set to any temperature between 300 °C (572 °F) and 1700 °C (3092 °F). A precision thermocouple controls the blackbody cavity providing high accuracy and repeatability. A closed-end tube with a 25 mm (1”) aperture diameter is heated by specially manufactured elements. The temperature controller uses the industry standard PID algorithms to control the emitter temperature to within +/-0.5 °C. The blackbody uses a resistive heater that provide long life. (Running at temperatures greater than 1600 °C for long periods will shorten heater life.) An independent over-temperature power cutout system is an added safety feature. An internal fan keeps the cabinet surfaces at a safe, comfortable temperature.
Typical Calibration Applications
- Infrared Temperature Sensors
- Infrared Thermal Imagers
- Spectroradiometers
- High Energy Photon Generators
- Solar Radiance Simulation
- Optical Pyrometers
