Key Features
- High emissivity
- Excellent general purpose calibration
- Large aperture (3” diameter)
- High accuracy, high resolution
- Compact, lightweight
- Manufactured and tested to meet rigid quality control standards
- Furnished with certificate of calibration traceable to NIST
- RS232 serial communication (included)
Details

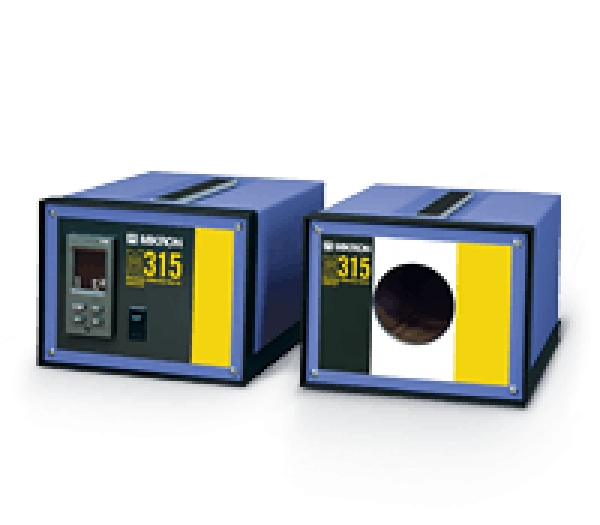

The M315HT is a two-piece portable blackbody calibration source with a digital indicating controller that can be set at any temperature between ambient +5 °C to 450 °C or 842 °F. Once set, the source temperature is controlled to within ±0.3 °C by an internal RTD sensor. The unit has an emissivity 1.00 at 8-14 um.
The M315HT calibration source and the digital indicating controller are contained in separate housings to allow greater flexibility in positioning the instrument within an installation, e.g. long path calibration.
Typical Calibration Applications
- Infrared Temperature Sensors
- Infrared Thermal Imaging Systems
- Spectrographic Analyzers
- Radiometers
- Flux Meters
