- Response time 180 µs
- Integration time 0.3 ms ... 5 s
- Very small spot sizes from 0.3 mm up
- Wide ange of optical heads
- Long measuring ranges

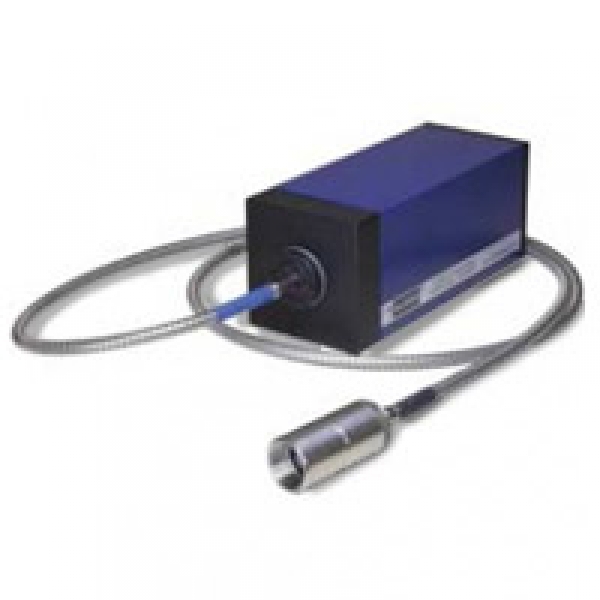

The KLEIBER 730-LO high speed fire optic pyrometer is the result of continued development of the existing well proven technology used in the KLEIBER 273 LWL instrument.
The instrument is designed to satisfy applications in research and development areas as well as for high speed industrial applications. The use of laser rejection filters provides problem free high speed measurements for applications in laser areas.
In particular, the extremely short response time of just 180 µs (t95), makes it an ideal instrument for such demanding measurements.
The availability of special filters and detectors can also provide reliable measurements on such materials as silicon and tungsten.
All connections and user controls, including emissivity correction and response speed setting, are conveniently located on the rear of the instrument.
The emissivity correction is adjustable between 0.1 and 1.0 (stepless).
To allow customisation for complex applications the response time can be set for periods up to 5 seconds.
The instrument offers a wide selection of fibre optical heads with measurement spots from 0.3 to 11mm diameter at distances from 60 to 1000mm.
The fibre optics cable can withstand ambient temperatures up to 260°C. This provides the opportunity to install the instrument for temperature and quality control in the areas of steel production, metal processing and furnaces.
An integral LED-pilot light is included as the standard targeting aid, the spot size of which is identical to the size of measurement spot.
The pilot light enables quick and accurate focussing onto the measurement area.
To cover additional applications, wide temperature ranges have been developed for this high speed pyrometer.
