Response time 180 µs
Integration time 0.3 ms ... 5 S
Vario or macro optics
Extremly small spot sizes between 0.7 ..... 28 mm
Long measuring ranges

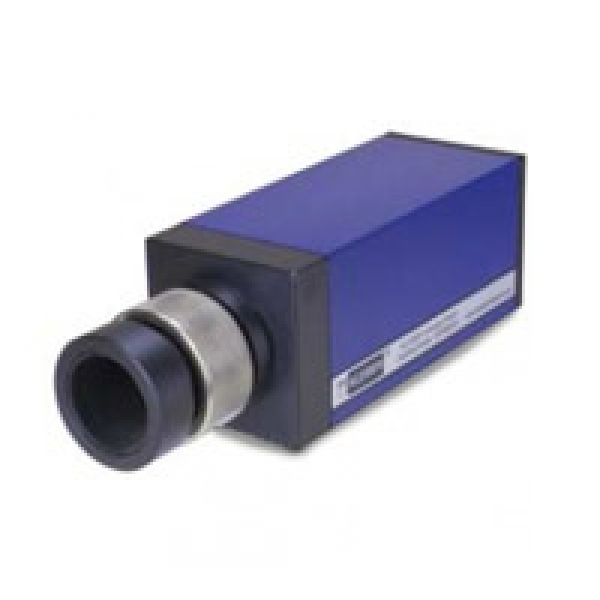

The KLEIBER 730 is a High Speed pyrometer for very fast temperature measurement.
The instrument is designed for applications in research and development areas and industrial applications where high speed measurements are required. The use of laser rejection filters provides problem free high speed measurements for applications in laser areas.
In particular, the extremely short response time of just 180 µs (t95), makes it an ideal instrument for such demanding measurements.
The availability of special filters and detectors can also provide reliable measurements on such materials as silicon and tungsten.
Apart from the response time, the KLEIBER 730 excels with its stable vario optic, which is included in the standard scope of delivery. This optic provides measurement spots from 2.5 to 28 mm at distances from 450 to 3000 mm.
For very small targets, a macro optic is available with a measurement spot of just 0.7 mm at 288 mm measuring distance.
All connections and user controls, including emissivity correction and response speed setting, are conveniently located on the rear of the instrument.
The emissivity correction is adjustable between 0.1 and 1.0 (stepless).
To allow customisation for complex applications the response time can be set for periods of up to 5 seconds.
The instrument is offered in three different spectral ranges, making it suitable for a wide range of demanding measurement applications.
An integral LED-pilot light is included as the standard targeting aid, the spot size of which is identical to the size of measurement spot. Optional through-lens sighting is also available on request.
To cover additional applications, wide temperature ranges have been developed for this high speed pyrometer.
