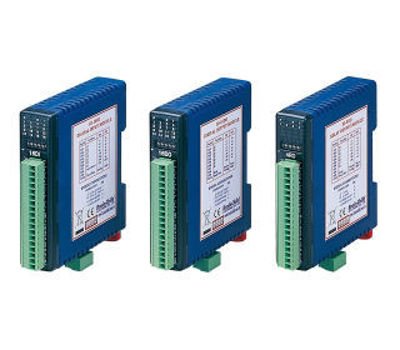

The IO-8AOV Data Acquisition Modules is a 8 channel voltage output module. Each channel can be set to output a voltage in the range 0 – 10V. The outputs are isolated from the logic and share a common negative terminal. The resolution is 12 bits, so writing a value to the Modbus register for each output of 0 - 4095 would give an output current of 0 – 10V. A value of 819 ± 1LSB will give a current output of 2V.
These modules are used with HMI, PLC or SCADA (Supervisory Control And Data Acquisition) via Modbus RTU protocol. IO Studio is its PC software for setting communication. Data Acquisition Studio is its PC software for DAQ purpose.
Brainchild develops and offers a series of innovative Modular IO systems for distributed I/O requirements. If you are looking for a specific io card, just feel free to contact our service team.
- Portable
- Modbus connectivity
- Simple setup and easy handing
- Upto 128 Module on RS485 network
- Isolated modules avalible for special applications
- Low-cost IO modules addition to existing PLC system
- Standard software for module configuration and trouble shooting
- Date acquisiton software for data storage and Real-time analysis on PC
- IO modules used with the third party softwares via Modbus RTU Protocol
- Interface with field devices to provide real-time data for SCADA / PLC / HMI
- LEDs on every modules for digital IO status, communication and power supply
- Different types of IO Modules AI, AO, DI, DO, RTD, Thermocouples are available
- Direct reading of temperature without scaling by using RTD and Themocouple Modules
