The IO 8-6 can be used for input and output of digital signals. It consists of one module which can be mounted onto a DIN rail.
In order to be used with the program InfraWin, the IO 8-6 has to be integrated into the RS485-bus. The bus address of the IO-Box is hard coded to “90”. The RS485-bus must be terminated with resistor. The whole RS485-bus (pyrometer and IO 8-6) must be connected to the PC via a RS485<=>USB converter.

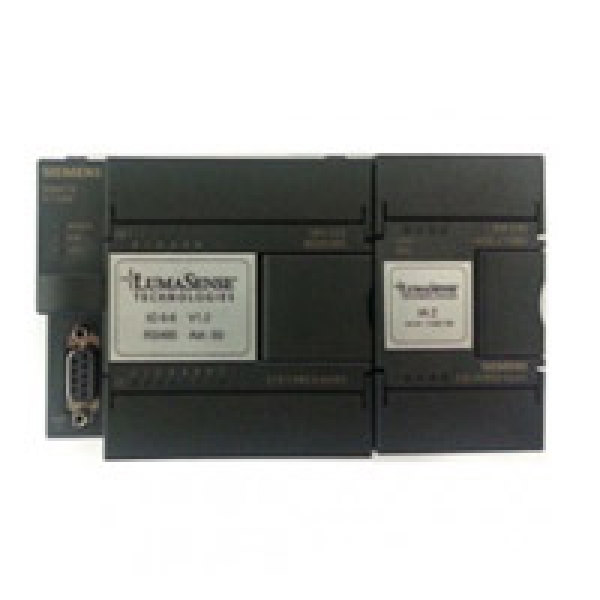

IO 8-6: IO-Module RS485 with 8 Inputs, 6 Relay outputs
Reference number: 3 826 770
IA 2: Analog output module with 2 analog outputs (can be used only together with IO 8-6)
Reference number: 3 826 780
