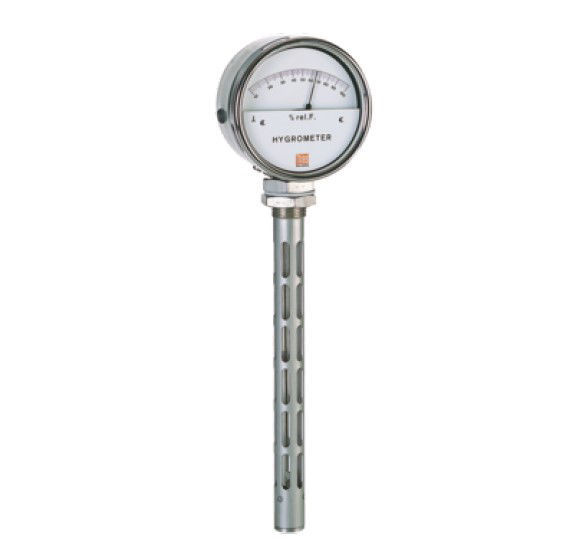

Indicating humidity measuring instrument with resistance output. Sturdy construction.
The outer parts such as the case head and the immersion stem are made of stainless steel.
Order-No. Electr. output Connecting
| 1.1000.50.015 |
200 Ohm linear |
Lemo-plug |
| 1.1000.50.515 |
200 Ohm linear |
3m cabel |
| |
Ambient temp. |
10 ... 100 % rel. F. |
| Accuracy |
± 2 % rel. F. |
| Scale graduation |
1% rel. F. non-linear |
| Measuring element |
H |
| Measuring range |
- 35 .... + 70 °C |
| Scale length |
94 mm (90°) |
| Stem diameter |
22 mm |
| Stem length |
250 mm |
| Protection (case) |
IP 65 |
| Total length |
Case 350 mm |
| Weight |
0,45 kg |
Weather and Thermal Radiation Shield
Protective covering for the preceding hygro-transmitters in case of outside mounting.
Thus avoiding atmospheric influences and radiation errors, as far as possible, which might affect the measuring results.
| Order-No. | | |
|---|
| 1.1025.51.000 |
Installation pin |
Ø 22 x 27 mm |
| |
Material |
Al, anodized and varnished |
| Dimension |
Ø 170 x 450 mm |
| Weight |
2,5 kg |
Wind Protection
Gauze- and wind protection, protects the humidity measuring element from coarse dust (> 0,32 mm) in case of wind velocities > 3 m/s. Suitable for above hygro transmitter.
| Order-No. | | |
|---|
| 1.0509.85.006 |
Diameter |
24 mm |
| |
Length |
200 mm |
| |
Mesh aperture |
0,32 mm |
| |
Material |
Niro, Brass |
| |
Weight |
0,022 kg |
