Furnace CCTV-Systems

Complete systems including all necessary peripheral equipment from one source.

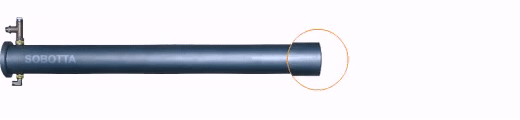

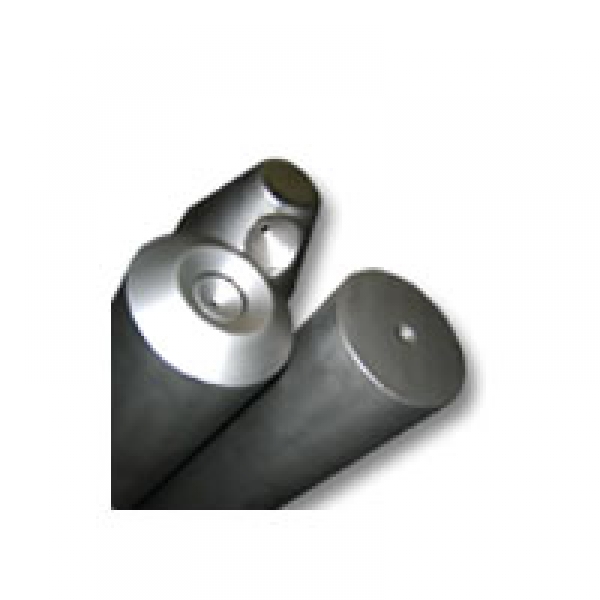

Furnace probes

There are numerous types of probes available in different diameters and materials for the individual applications, e.g. steel housing in 1.4571 (commonly referred to as V4A) and in nickel-based alloys.
The probes are available for water cooling as well as for cooling with gas or air.

For applications with very dust-laden furnace environments SOBOTTA has developed and patented the tried and tested mechanism for circulating air freely.

The probes cover the picture angle and viewing direction width extensively.
They can be supplied with axial view with lenses up to 110° diagonal picture angle and also with radial view (70° angled) up to 110° diagonal picture angle.

Since SOBOTTA is an independent supplier of video systems, any make of CCD cameras can be applied at request.
The standard range of CCTV solutions comprises cameras from the near infrared region to the classic visual range through to cameras for detection in the near UV region.



CCD-Camera
 There are many CCD cameras for installation are available in both color and b / w; with 1/2 "or 1/3" imagers
Axial Furnace Lenses
In different picture angles 70° / 94° / 110° other picture angles are available upon request, incl. filter thread for colour or neutral filters, automatic iris control, optional remote iris control.

Furnace Lenses for Radial View
In different picture angles 70° / 94° / 110°, viewing angle 70° radial via prism mirror, incl. filter thread for colour or neutral filters, automatic iris control, optional remote iris control.

Camera Module Prepset
On telescopic holder with rear probe lid, incl. 16-pin camera system plug and 1/4” purging air connection, incl. assembly and cabling of camera and lens, incl. thermo alarm contact (break contact > + 55 °C).
*
*
*
*
*
*
*
