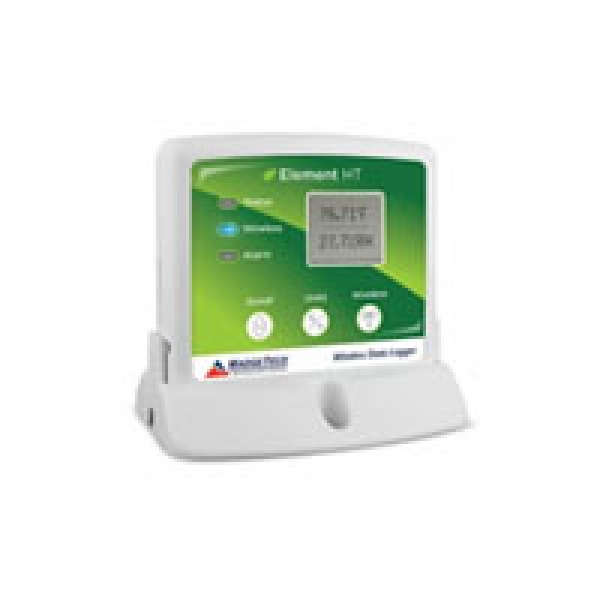

The Element HT is two-way wireless temperature and humidity data logger with LCD. Designed for HVAC studies as well as day to day temperature and humidity monitoring of grow and storage rooms. Designed with external humidity and RTD based temperature sensors, the ergonomic device provides a fast response time for both parameters. For customer convenience, the large digital display provides current readings as well as minimum, maximum and average readings for a quick snapshot of the logged data. This allows customers to quickly access data and spend less time maintaining the device.
TEMPERATURE
| Internal Channel Temperature Sensor |
Resistance Temperature Detector (RTD) |
|---|
| Internal Channel Temperature Range |
-20 °C to +60 °C |
|---|
| Internal Channel Temperature Resolution |
0.01 °C |
|---|
| Internal Channel Temperature Calibrated Accuracy |
±0.5 °C (5 °C to 55 °C) |
|---|
HUMIDITY
| Humidity Sensor |
Relative Humidity Sensor |
|---|
| Humidity Range |
0 %RH to 95 %RH |
|---|
| Humidity Resolution |
0.1 %RH |
|---|
| Humidity Calibrated Accuracy |
±3.0 %RH, ±2.0 %RH typical @ 25 °C
(10 %RH to 90 %RH; 5 °C to 55 °C) |
|---|
WIRELESS
| RF Carrier Frequency |
2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
|---|
| RF Baud Rate |
250,000 |
|---|
| Output Power |
+0 dBm typical |
|---|
| Receiver Sensitivity |
-95 dBm typical |
|---|
| Typical outdoors Line of sight |
Up to 2,000 ft |
|---|
| Typical Indoors line of sight |
Up to 500 ft |
|---|
