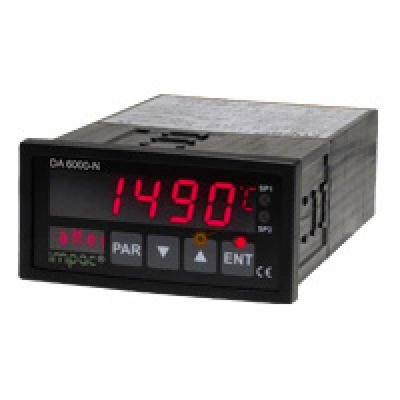

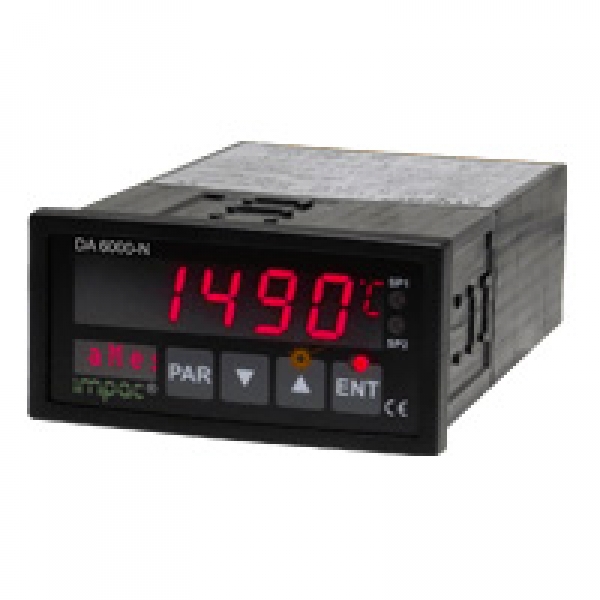

Temperature display
5 digit 7 segment LED, 13 mm, red
Menu display
4 digit LED matrix, 5 mm, red
Temperature range
-100,0°C...3200°C (-148,0°F...5792°F)
Power supply
85...265 V AC, 48...62 Hz or 18...30 V DC, ripple max 0.5 Vpp
Power consumption
approx. 7 VA (no external devices connected)
Pyrometer interface
Galvanically separated, optionally RS232 or RS485 half duplex, Baudrate 1.2...38.4 kBd
for communication with a digital pyrometer
Operating ambient temperature
0...50°C on the housing
Storage temperature
-20...70°C
Weight
approx. 350 g
Enclosure rating
Front panel IP 40, otherwise IP 20 (DIN 40 050)
Display resolution
0.1°C up to 999,9°C; 1°C for temps. above (0.2°F up to 1831.8°F, 1°F above)
Housing
Plasic housing (flame retardant Noryl),
48 x 96 x 141 mm (DIN 43 700)
front panel fixed with screw clips.
Front panel cut-out
45+0,6 x 92+0,8 mm
Mounting depth required
= 165 mm with clips and cable
Connector type
Plug-in clips, clamping area 0.13 to 2.5 mm2 (AWG 28 to 16) with conductor end tubes 0.5 to 1.5 mm2
Measuring rate
depends on baud rate, e.g. 50 ms at 19.2 kBd
Display refresh time: 300 ms or immediately (see measuring rate) at changes > 5°C
Toggling °C/°F display unit only, not pyrometer
Menu depends on type connected pyrometer and operating mode
Reference numbers: 3 890 560; 3 890 570
