CR06

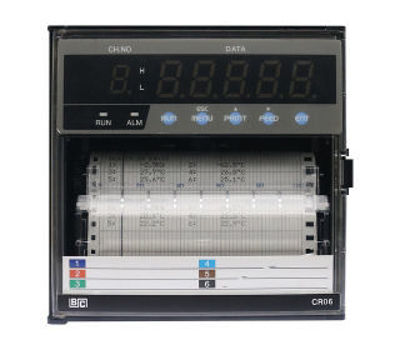

Temperature Chart Recorder with Alarm

It is dotting style of 6 - channel chart recorder, universal input, low cost, short depth 150mm, light weight 1.5 kgs and IP65 water-resistance. As a professional and experienced manufacturer, we supply high-performance and quality paperless recorders, video graphic recorders, paperless chart recorders, chart recorders, and temperature chart recorders.

The CR06 model hybrid recorder offered by Brainchild is a top quality 6-channel dotting chart recorder designed for maximum flexibility in use, and a long life. This recorder provide 6-color printing and universal temperature & process inputs. It combines the features of traditional analog chart recorders, the powers of digital data printing, and is configurable for more than 20 input types. For permanent recording of parameters, for statutory compliance or quality control, the CR06 will provide a low cost and convenient solution. Standard RS232 port & IP65 front cover. Consumables are economical and easy to install.

  • 6-channel dotting
  • Short depth in 150mm
  • Weights 1.5kg only
  • Dust-proof.IP-65 Water-resistance
  • Standard RS-232 Communication interface
  • Universal input and range
  • UL, CSA, CE approved
  • 144Wx144Hx150D mm
