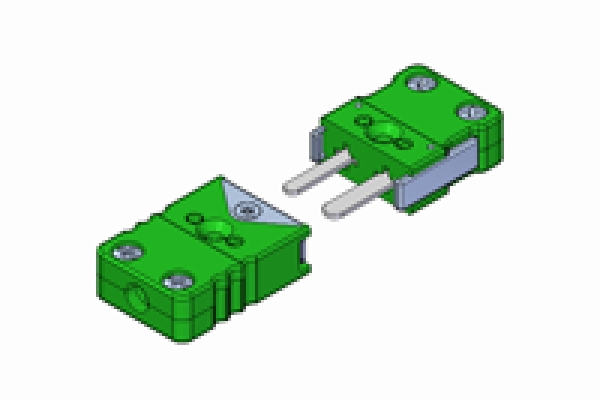

Self locking connector pair for thermocouple and RTD circuits. Locking feature prevents unwanted disconnection due to vibration etc. Suited for small wires and mineral insulated cables.
Construction:
– Glass filled high quality thermoplastic body with original thermocouple material pins and springloaded inserts.
– Polarized pins ensure proper connection.
– Easy wire connection through sandwich construction.
– Molded barriers prevent short circuit.
– Rugged one body design.
– Stainless Steel screws with combination head (Slotted and Phillips)
– Stainless steel locking clip, Locking Connector Miniature also fits on our partnumbers CMP and CMJ
Wire size Miniature Thermocouple Connector Locking
– Accepts wires up to 0,6 mm.
– Maximum cable diameter 4,5 mm..
Temperature rating Miniature Thermocouple Connector Locking
– 200 °C Max.
Color Code Miniature Thermocouple Connector Locking
– Available in all color code standards incl. NFE, BS, JIS, etc.
Accessories Miniature Thermocouple Connector Locking
– See separate specification sheet.
