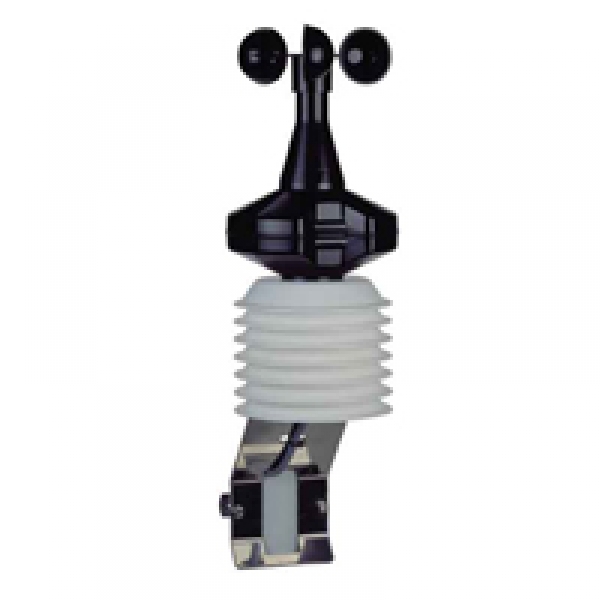

The Clima Sensor D measures the parameters
- wind speed
- precipitation (yes/no)
- brightness (east,south,west)
- temperature
- air humidity
- twilight
The output voltages might be used for the control of external instruments and/or the acquisition of analogue measuring data.The sensor combines perfectly the sensors for the 5 most important parameters, necessary for the control and monitoring in the field of building control technology, household technology, Venetian- and sun- blind regulation as well as green house control. The compact construction allows a simple and easy mounting.
The Compact - System
The Clima Sensor D contains a maximum of 5 sensors for the measurement of the most important parameters, required for the control of protecting and warning devices in the field of building control technology. All exterior parts are stainless, made of high-quality synthetic material.
Wind Velocity
The wind is detected by means of a cup star, the revolution number of which is linear-proportional to the wind speed. The revolution number is taken by a Reed-contact.
Brightness
The brightness is detected by three independent photo-diodes which are arranged in 90°-segments (east, south ,west).The three voltage outputs are related to the segments; they are linear to the brightness
Air Humidity
The measurement is carried out by means of an immediately responding capacitive humidity sensor, changing its capacity in correspondence with the relative air humidity.
Mounting easy made
The sensor is completely delivered with a 10m connecting cable and a mounting clamp of stainless steel for the installation on walls or masts.
Precipitation
The precipitation (rain, snow, hail, soft hail, etc.) is detected acc. to the reflection-method with modulated infrared-light.
Temperature
The temperature sensor is a standard platinum-resistant- thermometer Pt100 (acc. to DIN IEC 751) of long-term stability and high accuracy.
