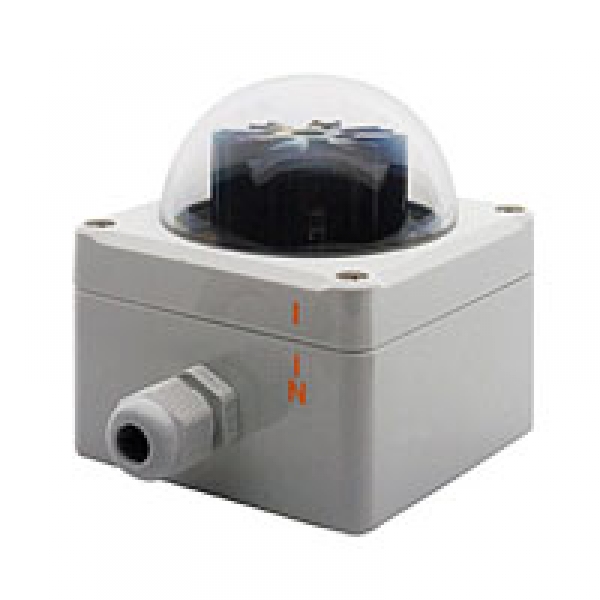

The brightness transmitter serves for the acquisition of the daylight intensity, depending on the position of the sun. The physical measuring values are output as illumination-proportional voltage and, for example, used for the sun-position-dependent control of shading devices, heating- and irrigation plants.
- The measuring value “brightness” of model 7.1414.60.000 is acquired by eight independent sensors (photo diodes), which are arranged in 45°-segments. (North, NE, East, SE, South, SW, West, NW ).
- The measuring value “brightness” of model 7.1414.61.000 is acquired by three independent sensors (photo diodes), which are arranged in 90°-segments (East, South, West )
| Order Code | |
|---|
|
Measuring range
|
0 ... 100 kLux |
| Sensor |
SFH 206 K |
| Spectral range |
400... 1100 nm |
| Accuracy |
±2% of final value of meas. range |
| Acquisition angle with 7.1414.60.000 |
Elevation: 0... 90° |
| Azimut: 8 x ± 22,5° |
| Acquisition angle with 7.1414.61.000 |
Elevation: 0... 90° |
| Azimut: 3 x ± 45° |
| Electrical output |
0...10 V each sector; the output are short-cut-proof and can be connected in parallel; voltage limit to <10,5 V. The highest value is delivered at the mutual output. |
| Operating voltage |
12...28 VDC / 24VAC |
| Load resistance |
= 1000 ? |
| Operating power |
Approx. 10 mA w/o heating/ max. 200 mA with heating without signal currents. |
| Ambient temperature |
- 30...+ 70° C |
| Protection |
IP 65 |
| Weight |
150g |
| Connection |
via screwed cable gland |
