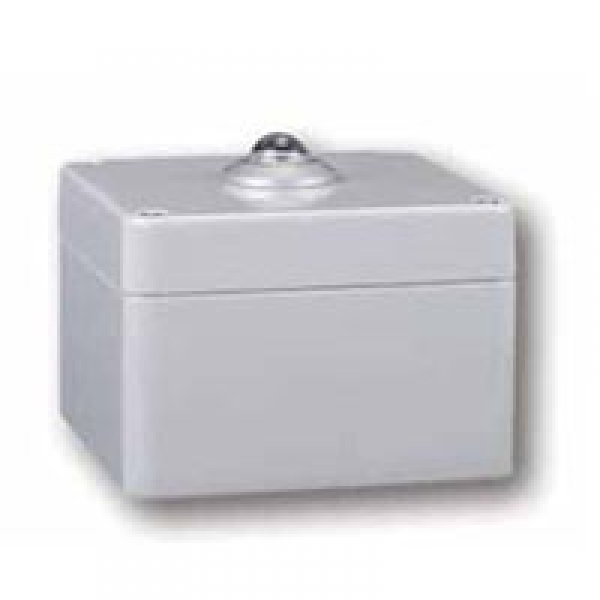

The instrument serves for the acquisition of the daylight intensity, and is adapted to the sensitivity of the human eye.
The linearized electrical output signal can be used for the control of shading devices, heating systems, and irrigation plants.
| Order Code |
|
|
|
7.1414.10.xxx
|
Measuring range |
0 - 100 000 Lux |
|
7.1414.12.xxx
|
0 - 20 000 Lux |
|
7.1414.15.xxx
|
0 - 5 000 Lux |
|
7.1414.22.xxx
|
0 - 2 000 Lux |
|
.xx.040
|
Electrical output |
0 - 20 mA (600 Ohm) |
|
.xx.041
|
4 - 20 mA (600 Ohm) |
|
.xx.061
|
0 - 10 V (max. 10 mA) |
| |
Accuracy |
±3 % v. Mb. |
| Spectral range |
0,350 - 0,775 µm |
| Half angle |
±55 degree |
| Operating voltage |
24 V AC/DC |
| Protection |
IP 65 |
| Dimensions |
80 x 82 x 65 mm |
| Weight |
0,15 kg |
