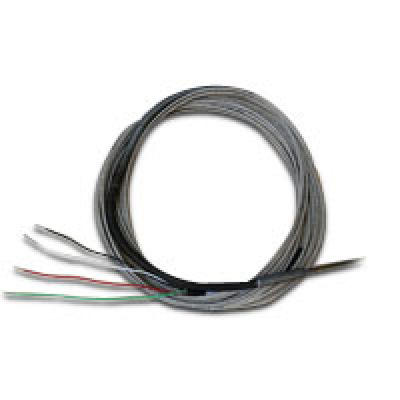

AM1643 full immersion PRT features a unique design that allows for the users to apply the probe together with its lead wire in a high temperature environment such as ovens or furnaces etc.
It covers a wide range of temperature from 0 °C to 420 °C with amazing accuracy of ±0.04°C at 0 °C, short term stability of ±0.02°C and fast respond time of 5 seconds. The standard length is 2-inch but customized dimensions are available per request. Customized length can range from 2 inches to 12 inches.
To reach the best performance in stability and repeatability, the wire-wound sensing elements are specially designed to protect the platinum sensing wire from contamination at high temperature. A unique support structure and filling material provide the best balance among the hysteresis effect, mechanical shocks and thermal shock performance. This probe conforms to the DIN/IEC-751 curve precisely.
· Temperature range: 0 °C to 420 °C
· Accuracy: ±0.04 °C at 0 °C
· Long term drift: ±0.04 °C
· Short term stability: 0.02 °C
· Transition junction and lead wire can withstand high temperature up to 420 °
· Temperature Coefficient 0.00385
· Follow DIN/IEC-751 precisely
· Inconeltm sheath
· Quick response time
· Customized dimensions available
