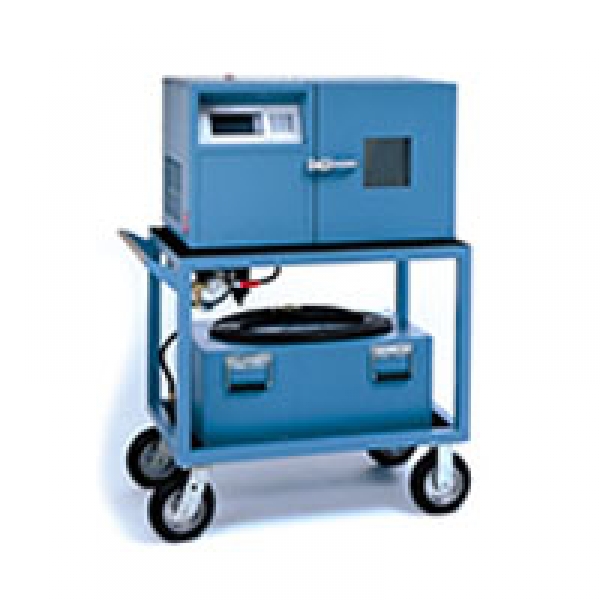

2500 Humidity Generator

  • Relative Humidity Range: 10 to 95%RH
  • Relative Humidity Resolution: 0.02 %RH
  • Relative Humidity Uncertainty: (@ Pc Tc *) 0.5 %RH
  • Chamber Temperature Range: 0 to 70 ºC
  • Chamber Temperature Range: (Optional) –10 to +70 ºC
  • Chamber Temperature Resolution: 0.02 ºC
  • Chamber Temperature Uniformity: ** ±0.1 ºC
  • Chamber Temperature Uncertainty: * 0.06 ºC
  • Chamber Pressure Range: Ambient
  • Gas Flow Rate Range: 5 to 20 l/m

 *Represents an expanded uncertainty using a coverage factor, k=2, at an approximate level of confidence of 95%.

** When operated at temperatures within 10 ºC of room ambient temperature.

Features

  • 0.5 %RH Uncertainty *
  • Traceable to NIST
  • Self Contained and Mobile
  • Automated Control of User Setpoints
  • 2500 ControLog® Automation Software
  • HumiCalc® with Uncertainty Software
  • Computerized Internal Transducer Calibration
  • Low Noise Air Compressor with Air Dryer
  • RS-232C Serial Interface

Overview

The Model 2500 Benchtop Humidity Generator is a self contained system capable of producing atmospheres of known humidities using the fundamental, NIST proven, “two-pressure” principle. This system is capable of continuously supplying accurately known humidity values for instrument calibration, evaluation, and verification, as well as for environmental testing. Simply apply power and the 2500 will power-up ready to generate. Humidity setpoint values are input by the operator from the front panel keypad and are limited only by the range of the 2500 humidity Generator.
